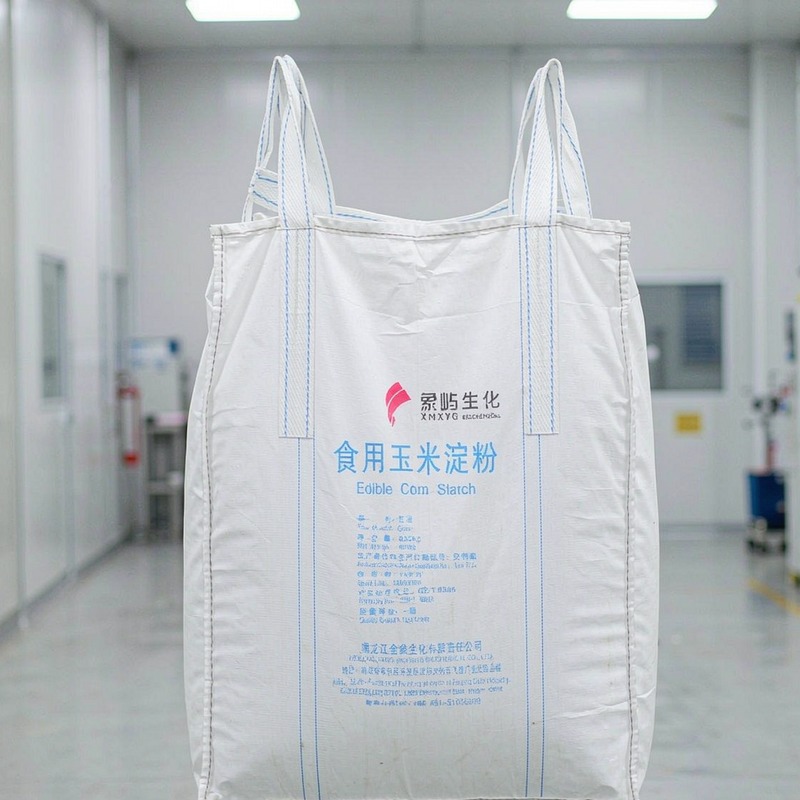

Starch FIBC Bulk Bag

Starch FIBC Bulk Bag is a tubular bulk bag specially designed for the storage, handling and transportation of edible starch and other food powder materials.

Featuring a dust-proof sealed construction, 4+2 reinforced lifting loops, a small top filling spout and a small bottom discharge spout, the bag helps reduce fine powder leakage and dust dispersion during filling and discharging.

With a standard Safe Working Load (SWL) of 1200 kg and optional food-grade PE liner, it provides a reliable bulk packaging solution for starch processing, storage and transportation. Bag dimensions, liner thickness, spout specifications and printing can be customized according to your production requirements.

Key Features

Dust-Proof Construction

Tight lock stitching combined with an optional food-grade PE liner helps prevent fine starch powder leakage, reduce material loss and maintain a cleaner production environment.

Moisture Protection

An optional sealed food-grade PE liner provides additional protection against moisture ingress, helping reduce starch caking during storage and transportation.

Controlled Filling & Discharge

The small top filling spout and bottom discharge spout feature a tight closure design to help control dust dispersion during filling and unloading operations.

1200kg Heavy-Duty Load Capacity

The 4+2 reinforced lifting loop design provides balanced force distribution during handling and lifting. The standard Safe Working Load is 1200 kg with a 5:1 safety factor.

Food-Contact Material

The bag is manufactured from food-contact PP woven fabric. Optional food-grade PE liners are available for edible starch and food powder applications.

Customizable Configuration

Bag dimensions, SWL, filling and discharge spout sizes, liner specifications, printing and handling marks can be customized according to your starch characteristics and production line.

Technical Specifications

Product Name: Starch FIBC Bulk Bag
Material: Food-Contact PP Woven Fabric
Bag Construction: Tubular
Safe Working Load (SWL): 1200 kg
Safety Factor: 5:1 Standard
Dimensions: Customizable
Fabric Weight: 160–180 g/m²
Coating / Lamination: Optional PE Coating
Lifting Loops: 4+2 Loops
Top Type: Small Top Filling Spout
Bottom Type: Small Bottom Discharge Spout
Liner: Optional Food-Grade PE Liner
Liner Thickness: 0.06–0.10 mm
UV Stabilization: No
Electrostatic Type: Type A Standard; Type C/D Optional for Dust Explosion Areas
Compliance: Food Contact Certificate & FIBC Load Test Report
Printing: Natural/White, Custom Logo & Handling Marks
Packing: Compressed Bale on Pallet

Applications

Starch FIBC Bulk Bags are designed for bulk packaging, filling, lifting, storage and transportation of edible starch and food powder materials.

They are particularly suitable for applications where fine powder leakage, moisture protection, dust control and food-contact requirements need to be considered.

Typical applications include:

• Edible Starch
• Food Powder Materials
• Starch Processing Plants
• Food Ingredient Production
• Bulk Powder Storage
• Bulk Powder Transportation

Custom Starch FIBC Solutions

The ideal FIBC configuration depends on the characteristics of your starch and your production process.

Send us your starch type, bulk density, required SWL, bag dimensions, filling and discharge method, liner requirements and target market. We will recommend a suitable FIBC configuration based on your storage and handling conditions.

Contact us today to discuss your Starch FIBC Bulk Bag requirements and request a quotation.

Frequently Asked Questions

What information do you need to recommend a suitable Starch FIBC?

Please provide your starch type, bulk density, required SWL, bag dimensions, filling and discharge method, liner requirements and dust-control requirements. Based on this information, we can recommend a suitable FIBC configuration for your powder handling operation.

Can the bag size and SWL be customized?

Yes. Bag dimensions and Safe Working Load can be adjusted according to your production line and application. Fabric strength and safety factor will be selected according to the required load.

Which top and bottom designs are available?

The standard configuration is a small top filling spout combined with a small bottom discharge spout. Spout dimensions can also be customized according to your filling and discharge equipment.

Can you provide PE or aluminum foil liners?

Yes. Food-grade PE liners are available to provide moisture protection and help prevent fine powder leakage. Liner thickness can also be adjusted according to your requirements.

Is this bag suitable for food or static-sensitive applications?

The standard bag uses food-contact fabric and can be equipped with a food-grade liner. Type A is the standard electrostatic configuration, while Type C/D options are available for applications with specific static-control requirements.

Can you print our logo and handling instructions?

Yes. Custom printing is available for logos, gross/net weight information and lifting or handling marks. MOQ requirements apply.

What is the lead time and MOQ?

Lead time and MOQ depend on bag dimensions, liner specifications and printing requirements. Send us your RFQ and required specifications for exact information.

What documents can you provide?

Available documents include FIBC load test reports, food contact certificates, packing lists and export documents.
